This is an Integrated Solar Street Light with 32 Watt Solar Panel 15 Watt NICHIA LED with 2400 Lumens. It consists of 3.2 volts 60 AH LiFePO4 battery. Inbuilt intelligent sensor control system helps in charging the battery and switching light ON/OFF. Light runs with 100% brightness for first 4 hours and later on switched to intelligent control. Intelligent control regulates the brightness depending on the battery availability and ensure that it gives light throughout the night.
Solar Street light automatically turns ON/OFF depending on the light intensity. Light is switched ON when darkness is detected and is switched OFF when light is detected. This features helps saving the human and material resources.
Application: It is widely used in street and roads, residential areas, scenic spots, parks, private gardens and other public areas. It helps create safer environment and can increase people our door night activities.
Product Code: TTSSL15W
Item Type: Street Light
Product Color: Black
Water Resistance IP Level: 65
3 Year Warranty.
The light never turns OFF no matter how many rainy or cloudy days.
The light can be installed from Equator area to Polar region.
The Working temperature is -20 to 60 deg C
Integrated design, modular production and one screw installation.
2V, low voltage design. Safe and reliable.
The product is used with a high-efficiency LiFePO4 battery which is usually used for an electric bus.
Integrated package and convenient transportation.
Battery and Solar Panel:
Solar Panel: 5V, 32W
Solar Panel Life span: 25 Years
Battery Type: LiFePO4
Battery Voltage: 3.2V
Battery Capacity: 40 Ah
Battery Life span: 5-8 Years
Charge Type: Solar
Charging Time: 6 - 8 Hours
Working Time: 2 Nights
LED Wattage: 15 W, 2400 LM
LED - Max Power: 20W 3150 Lumens (1w=160 Lumens)
LED Chip Brand: Nichia
Led Lifetime: >50000 Hrs
Viewing Angle: 120°
Light Color and temperature: Pure/Cool White, 5000-6000K
ON and OFF Switch: Automatic.
Installation height is 4-5 Meters.
Installation distance is 15 -20 Meters.
It can be installed on a Pole.
Design and Finishing:
Material - Body: Aluminium +PC
Style: Modern, Elegant Appearance Design.
Product Color: Black

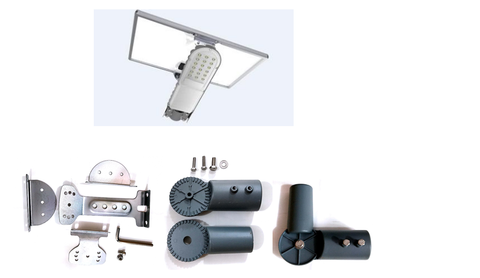

Included in Box:
Integrated Solar Street Light with Inbuilt battery and solar panel
M6 & M8 Allenkeys & Clamps
Product Weight and Dimensions:
Clamps & Bolts
Pictorial Information of Solar Street Light 15 Watt:
Solar Panel – During day solar cells absorbs solar energy.
Solar cells convert the solar energy into electrical energy which is stored in the battery.
Street light detects darkness and automatically consumes the energy that is already stored in the battery and emits lights in the LED.
Features and Advantages of a Solar Street light:
Energy Saving: Transforms sunlight into electrical energy. Sunlight is unlimited, clean and alternative energy source.
The light can be installed from Equator area to Polar Regions. The Working temperature is -20 to 60 deg C.
Environment Protection: No Pollution, Noise or Radiation.
Safety: Lower Voltage Power Supply (3.2 Volts), safe than conventional energy sources. This product is very safe and reliable operation.
This solar street light has got LiFePO4 battery which can withstand very high and low temperature. It is more efficient than Li-ion and lead acid batteries.
Easy Installation, no hanging wires or construction needed. The lamp can light up vast areas and 120-degree angle.
Unmatched reliability and quality.
Maintenance Free. This lamp turns ON / OFF Automatically. It does not need and manual intervention. Also there is no other maintenance required other than cleaning solar panel once in a while.
Eco friendly and high-end usage.
Elegant and Modern design. Can be used anywhere which gives a very rich look.
Solar Street Light should be installed on open sided land with sufficient sunlight.
This product can be easily fitted on 60 mm diameter pole.
Except pole all the materials are provided along with the light.
Use GI or MS pole depending on the requirements.
Height of the pole should be 4 -5 Meters above the ground level.
This product can be fitted on any design pole, ensure the inner diameter of the pole is not greater than 60 mm or 6 cm or 2.3 Inch.
Thickness of the pole should be above 2 mm to be long lasting.
Easy Installation: Once the pole is ready, use four M6 & M8 Allenkeys, Clamp is provided to fit the solar street light.
This product is maintenance free. However, if the product is used in areas where there is lot of dust, the solar panel has to be cleaned once in 6 months to ensure product charges efficiently.
Install the light at certain angle, so that during raining season panel is cleaned naturally.
This solar street light comes with 32 Watt Polycrystalline panel. It has a life span of 25 years. Normal sunlight should be sufficient to charge the battery as it needs to generate 3.2 volt’s power. These lights can be installed in any directions, however if it permits, it is ideal to install solar panel in the direction (North – South) tilted towards south. This is because India lies in Northern Hemisphere and sun moves from east to west from southern portion as there is tilt of the earth and elliptical orbit around the sun. This gives maximum exposure to sun on southern direction.
Size of panel:
Solar Panel Dimension
Battery type of this solar street light is LIFEPO4 (Lithium Ion Iron Phosphate Batteries or Lithium Ferrous phosphate). Unlike other types of batteries, life span of this battery is 5 to 8 Years. Advantage of using this battery is, it charges with 3.2 Volts. That means normal daylight would be sufficient to charge.
Battery Capacity is 3.2 V 40 AH. That is 128 Watt hours. Battery cycle is 3000. Controller ( Battery Management System or Protection Circuit) in the light ensures that there is cut off when battery is fully charged there by enhancing the health of the battery, Controller never allows battery to either over charge or discharge.
These type of batteries are safer, efficient and with stand high and low temperature. This the most advanced battery available in the market.
LED used in this light is SMD NICHIA. It is a renowned brand and world’s largest supplier of LED’s. NICHIA has got the most advanced LED technology with the capacity to emit 210 Lumens per watt. This light has got 2400 Lumens where 160 Lumens per 1 Watt. LED lifetime is 50000 hours. This light spreads around 15 meters’ diameter in 120 Degree angle.
