Solar Street Light 20 Watt Nightjars Series with MPPT Controller - TTSSIL20W

Overview:

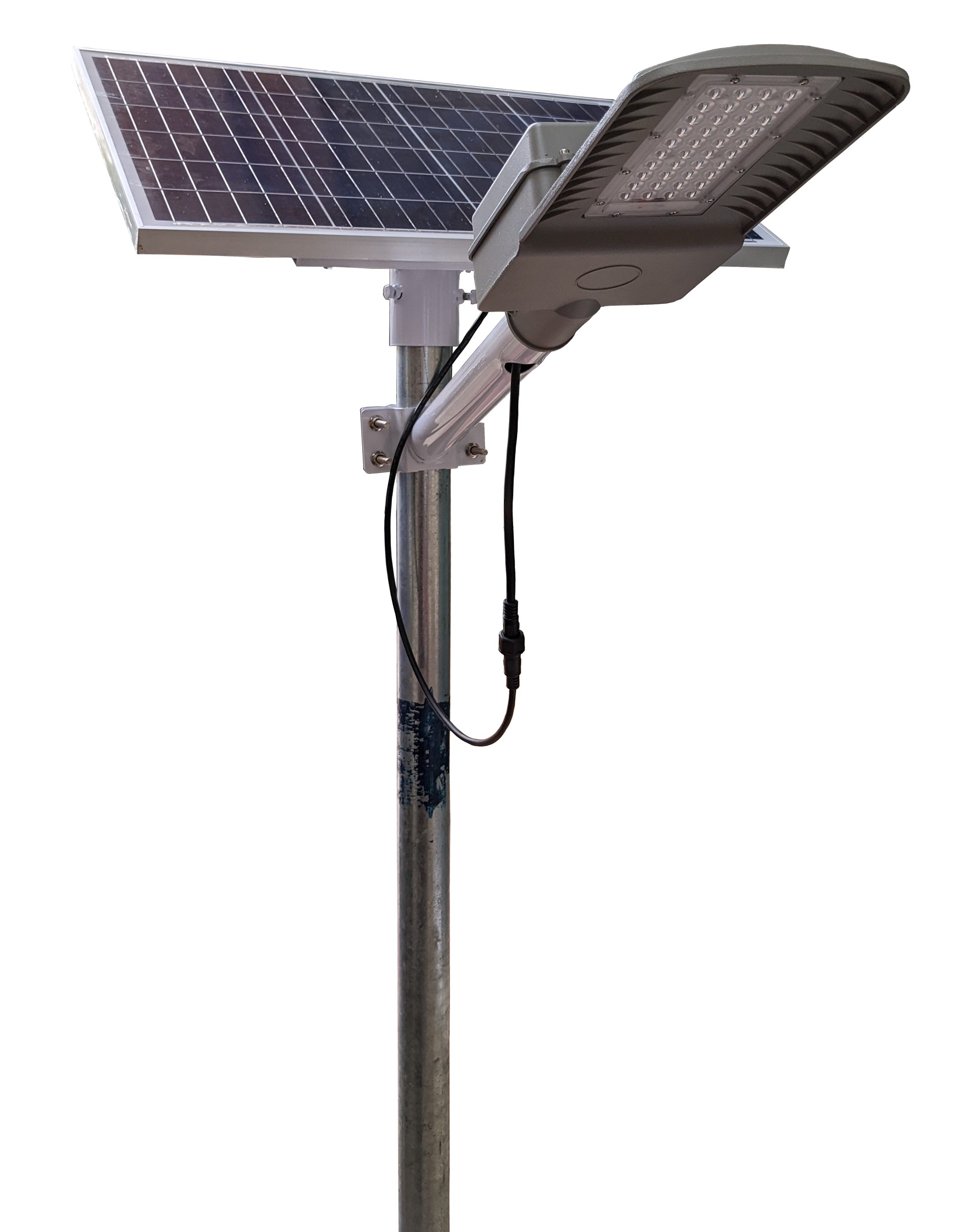

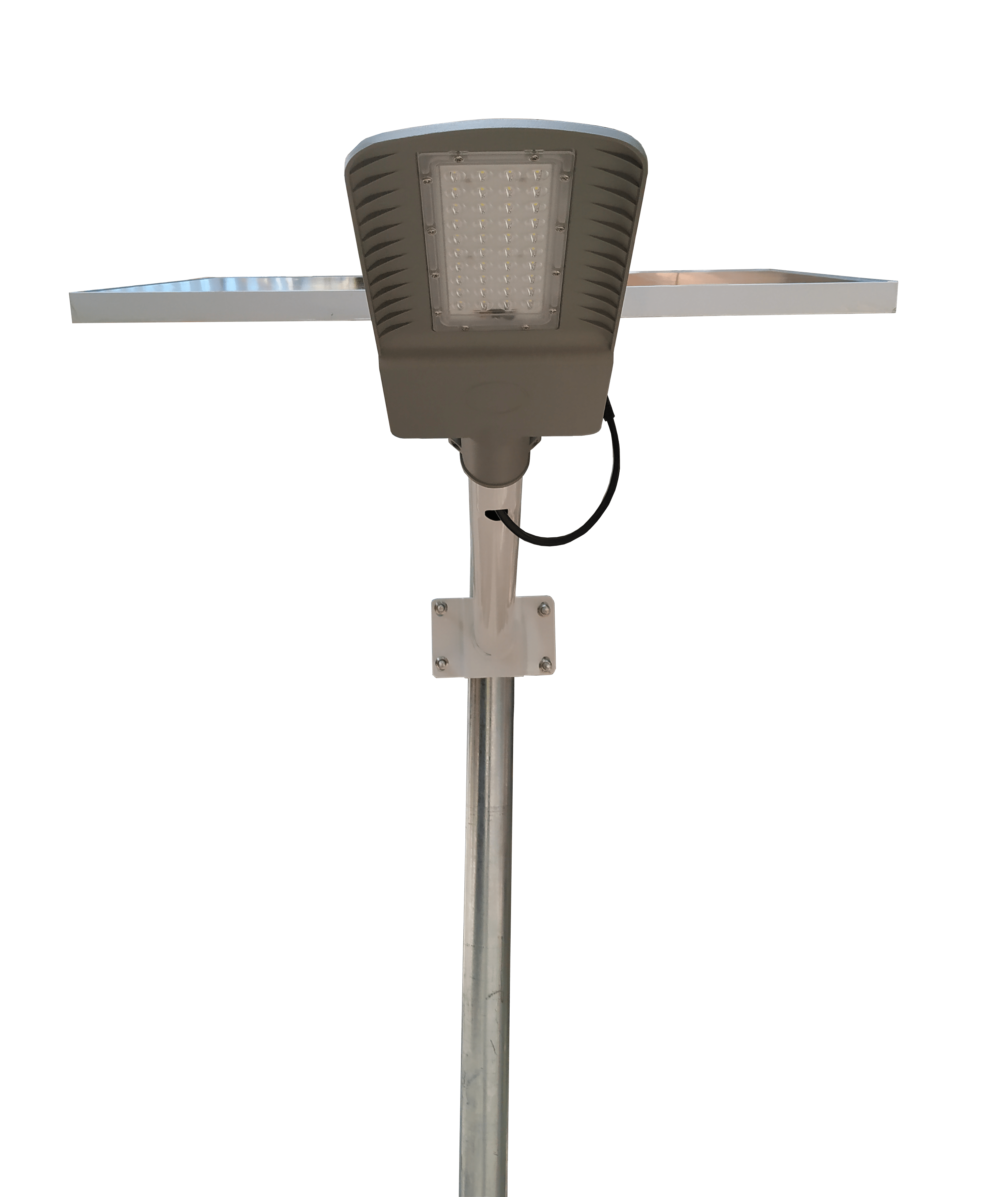

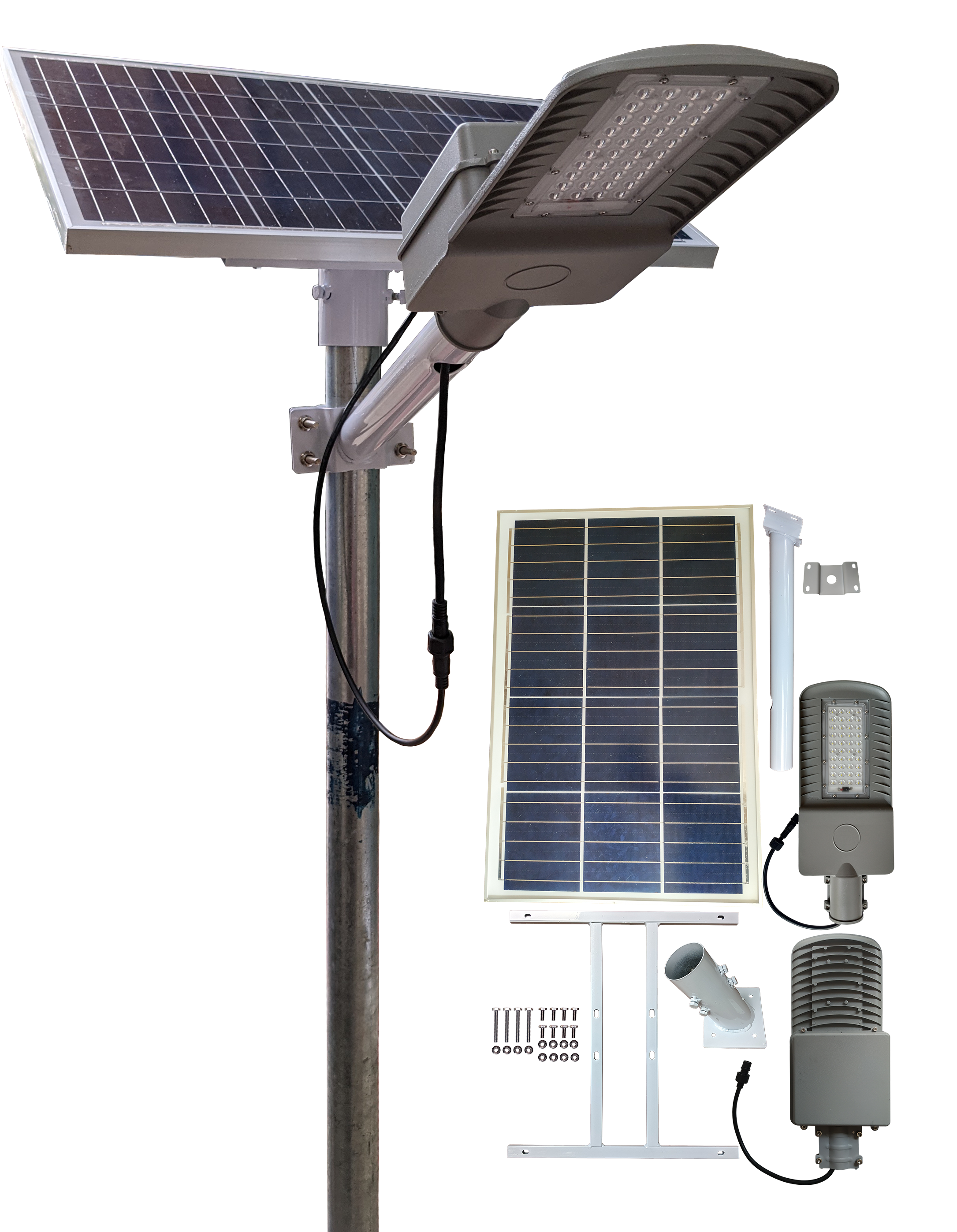

Model TTSSIL20W solar Nightjars street light comes with 40 Watt Solar Panel, 20 Watt LED with 3200 Lumens and 6.4 volts 40 AH LiFePO4 battery.  This is an Integrated solar street light where the solar panel comes as a separate unit and the luminary has in-built MPPT controller, battery and LED.  Minimum wiring is required to connect the panel and the luminary.  Due to the bigger size of the solar panel, 6 to 8 hours of charging is sufficient for the light to run the entire night.  The location of installation is of utmost importance for the lights to receive the highest amount of sunlight for charging.

All the components attached to solar Nightjars street light are energy efficient and offer longer lifespan.  Since the solar panel is an independent unit, panel direction can be changed to absorb maximum sunlight.  The most salient feature of this light is it illuminates at 100% brightness for the first hours of operation and then at a lower level until sunrise.  Solar Nightjars guarantees all-night illumination and would be most suitable for those areas that have an active night life.

Solar Nightjars street light is housed in durable ABS plastic and metal body and can be fixed on top of poles or walls.  Human and material resources can be preserved as the installation process is simple and easy and with basic cleaning and maintenance, efficiency and brightness of the lights can be increased.  The light is waterproofed to cope up with extreme weather conditions.  Because of the larger capacity of the solar panel, the lights can continue to light up even during monsoon days although at a lower voltage.

Application:

Solar Nightjars street lights are widely used in public streets and roads, residential areas, parks, stadiums, private gardens, pavements, tourist spots, school and college buildings, construction sites, small and medium factories and also to illuminate remote areas and villages with less access to grid electricity.

Product Details:

• Product Code: TTSSIL20W
• Brand: Tapetum
• Item Type: Street Light
• Product Color: Grey
• Water Resistance IP Level: 65
• 2 Year Warranty.

 Product Features:

• The light never turns OFF no matter how many rainy or cloudy days.
• The light can be installed from Equator area to Polar region.
• The Working temperature is -20 to 60 deg C
• Integrated design, modular production and one screw installation.
• The product is used with a high-efficiency LiFePO4 battery which is usually used for an electric bus.
• Integrated package and convenient transportation.

 Battery and Solar Panel:

• Solar Panel: 5V, 40W
• Solar Panel Life span: 25 Years
• Battery Type: LiFePO4
• Battery Voltage: 6.4V
• Battery Capacity: 40 Ah
• Battery Life span: 4-6 Years
• Charge Type: Solar
• Charging Time: 6 - 8 Hours
• Working Time: 1 Night

 LED Specifications:

• LED Wattage: 20 W, 3200 LM
• No of LEDs: 40
• LED Chip Brand: Philips
• Led Lifetime: >50000 Hrs
• Viewing Angle: 120°
• Light Color and temperature: Pure/Cool White, 5000-6000K
• ON and OFF Switch: Automatic.

Installation Condition:

• Installation height is 4-5 Meters.
• Installation distance is 10 -15 Meters.
• It can be installed on a Pole or Wall
• Preferred pole Diameter is 2 inch GI Pole or 2.5 Inch, MS Pole.
