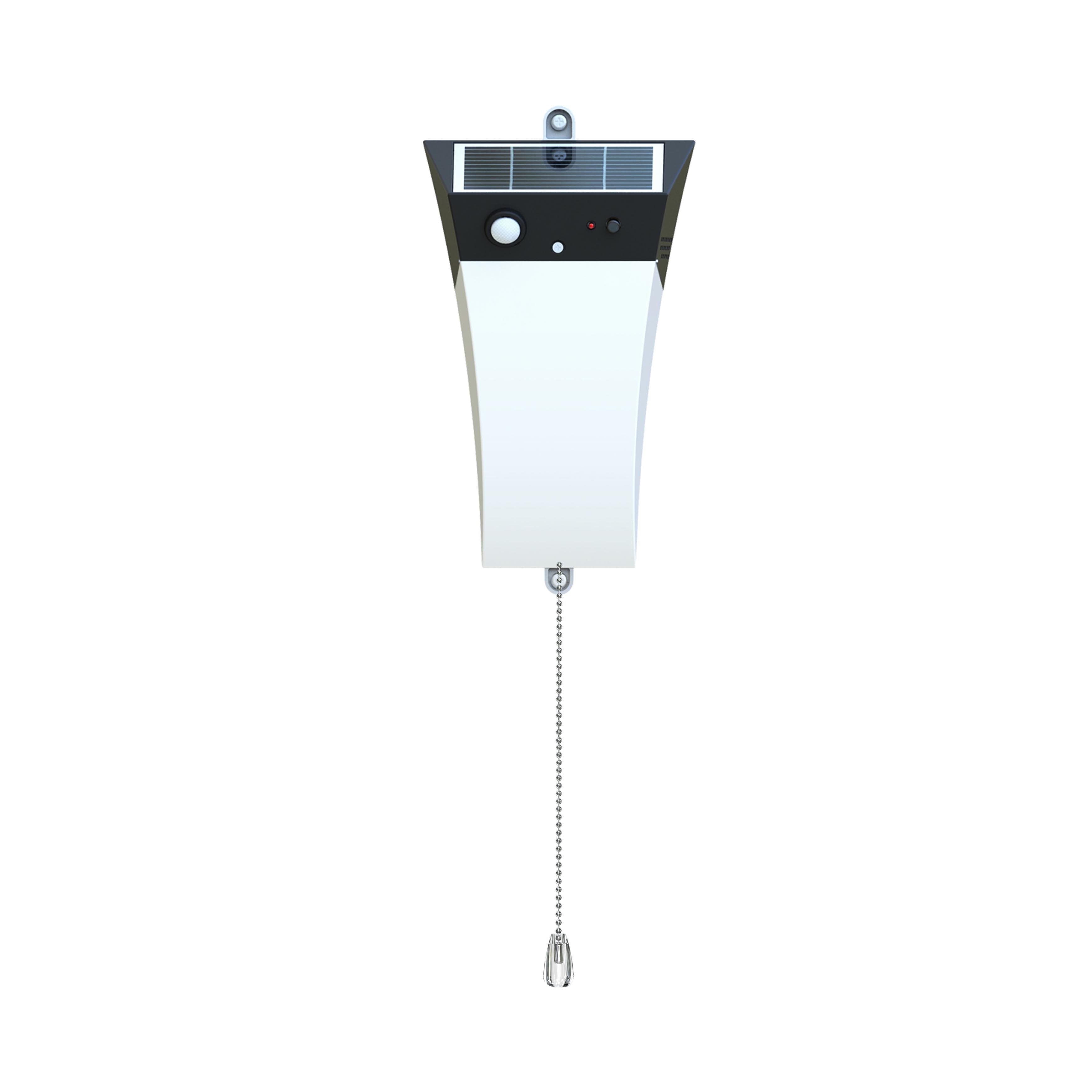

Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -
Solar Motion Wall Light - White LED Light - TTSMW5W -

Solar Motion Wall Light - White LED Light - TTSMW5W

Regular price Rs. 4,450.00 Rs. 2,800.00

* Order above Rs.3500 and get FREE DELIVERY.


This is an All in one Integrated Solar Motion Wall Light with 1 Watt Solar Panel 4 Watt NICHIA LED with 400 Lumens. It consists of 3.7 volts 2000 mAH Li-ion battery. Inbuilt Rechargeable Lithium ion battery provides protection on Overcharging/Discharging of batteries. Light runs from dusk to dawn ensuring to give maximum brightness throughout the night.

Motion sensor lights detects infrared waves/heat waves that radiates from moving objects especially warmer objects such as people, animals and cars thereby electronically turning on the lights. These lights can provide maximum brightness illumination in the dark. The main advantage of using these lights is to enhance security thereby reduces the crime. The battery will not discharge sooner as the lights are turned OFF when there is no motion and hence the brightness of lights remain throughout.

The light comes with 4 working modes with can be changed by pulling the hanging switch:

  1. Dim light 20 LM + PIR 400 LM 30S
  2. 100%: 400 LM
  3. 50%: 200 LM
  4. OFF

There are four choices in cycle with memory function.

Solar Motion Wall light automatically turns ON/OFF depending on the light intensity. Light is switched ON when darkness is detected and is switched OFF when light is detected. This features helps saving the human and material resources.

Application: It is widely used in outdoor garden, lawn, pathway terrace, parks, private garden, house gate, courtyard, fence and other public areas. It helps create safer environment and can increase people outdoor night activities

Product Details:

  • Product Code: TTSMW5W
  • Brand: Tapetum
  • Item Type: Solar Wall Light
  • Product Color: Black & White
  • Water Resistance IP Level: 65
  • 1 Year Warranty.

Product Features:

  • The light never turns OFF no matter how many rainy or cloudy days.
  • The Working temperature is -20 to 60 deg C
  • The light comes with 4 working modes which can be changed based on the user needs.
  • In dim light + PIR mode: the lamp turns ON 400 LM and high light for 30S when people come around 4 Meters close to the light.
  • The light turns ON 20 LM dim light again when people leave 4 Meters away.
  • Integrated design, modular production with European high grade appearance, high quality Aluminium housing and crystal wick craft.
  • 7V, low voltage design. Safe and reliable.
  • The product is used with a high-efficiency Li-ion battery which is usually used for an electric car and home electronics.
  • These type of Li-ion batteries provide protection on Overcharging/Discharging of batteries.
  • Integrated package and convenient transportation.

Battery and Solar Panel:

  • Solar Panel: 5.5V, 1W
  • Solar Panel Life span: 15 Years
  • Battery Type: Li-ion (Lithium ion)
  • Battery Voltage: 3.7V
  • Battery Capacity: 2000 mAh
  • Battery Life span: 5-6 Years
  • Charge Type: Solar
  • Charging Time: 4-6 Hours
  • Working Time: 1 Night

LED Specifications:

  • LED Wattage: 4 W, 400 LM
  • LED - Max Power: 4W 400 Lumens (1w=160 Lumens)
  • LED Chip Brand: Nichia
  • LED Lifetime: 50000 Hrs
  • Viewing Angle: 180°
  • Light Color and temperature: Warm White & Pure White, 2700-3300K & 5000-6000K
  • ON and OFF Switch: Automatic.

Design and Finishing:

  • Material - Body: ABS + PC
  • Style: Modern, Elegant Appearance Design.
  • Product Color: Black & White

Installation Condition:

  • Installation distance is 5 Meters.
  • Installation height is 3-4 Meters.
  • It can be installed on wall.
  • 1 Inch screws which is provided with the product.

Included in Box:

  • All in One Integrated Solar Motion Wall Light with Inbuilt battery and solar panel , 1 Inch Screws.


Product Weight and Dimensions:

Product Weight



Box Weight



Total Box Weight




Box Dimension











Product Dimension










Pictorial Information of Solar Motion Wall Light:

Solar Panel:

Solar Panel – During day solar cells absorbs solar energy.



Solar cells convert the solar energy into electrical energy which is stored in the battery.



Motion Wall light detects darkness and automatically consumes the energy that is already stored in the battery and emits lights in the LED.



Click on the Switch to turn ON/OFF the light.


Features and Advantages of a Solar Motion Wall light:

  • Energy Saving: Transforms sunlight into electrical energy. Sunlight is unlimited, clean and alternative energy source.
  • The light can be installed on wall. The Working temperature is -20 to 60 deg C.
  • Environment Protection: No Pollution, Noise or Radiation.
  • Safety: Lower Voltage Power Supply (3.7 Volts), safe than conventional energy sources. This product is very safe and reliable operation.
  • This solar motion wall light has got Li-ion battery which provides protection on Overcharging/Discharging of batteries.
  • Easy Installation, no hanging wires or construction needed. The lamp can light up vast areas and 180-degree angle.
  • Unmatched reliability and quality.
  • Maintenance Free. This lamp turns ON / OFF Automatically. It does not need and manual intervention. Also there is no other maintenance required other than cleaning solar panel once in a while.
  • Eco friendly and high-end usage.
  • Elegant and Modern design. Can be used anywhere which gives a very rich look.

Solar Motion Wall  Light User Manual:

Click to Download User Manual.

Installation Manual, Guide and Conditions:

Fixing the Light:

  • Solar Motion Wall Light should be installed on a wall.
  • Easy Installation: Fix the lamp using two 1 Inch screws.


  • This product is maintenance free. However, if the product is used in areas where there is lot of dust, the solar panel has to be cleaned once in 6 months to ensure product charges efficiently.
  • Install the light at certain angle, so that during raining season panel is cleaned naturally.

Solar Panel:

This solar motion wall light comes with 1 Watt Polycrystalline panel. It has a life span of 15 years. Normal sunlight should be sufficient to charge the battery as it needs to generate 3.7 volt’s power. These lights can be installed in any directions on a wall. Ensure that sufficient sunlight falls on the Solar Panel for the battery to get charged fully and for maximum brightness of the light throughout the night.

Size of panel:

Solar Panel Dimension








Battery type of this solar motion wall light is Li-ion (Lithium Ion Batteries). Unlike other types of batteries, life span of this battery is 5 to 6 Years. Advantage of using this battery is, it charges with 3.7 Volts. That means normal daylight would be sufficient to charge.

Battery Capacity is 3.7 V 2000 mAH. That is7.4 Watt hours. Battery cycle is 2000. Controller ( Battery Management System or Protection Circuit)  in the light ensures that there is cut off when battery is fully charged there by enhancing the health of the battery, Controller never allows battery to either over charge or discharge.

These type of batteries are safe & reliable, does not require priming and have high energy density. The rate of self-discharge is much lower than that of other rechargeable batteries.


LED used in this light is SMD NICHIA. It is a renowned brand and world’s largest supplier of LED’s. NICHIA has got the most advanced LED technology with the capacity to emit 210 Lumens per watt. This light has got 400 Lumens where 160 Lumens per 1 Watt. LED lifetime is 50000 hours. This light spreads around 3 meters’ diameter in 180 Degree angle.
