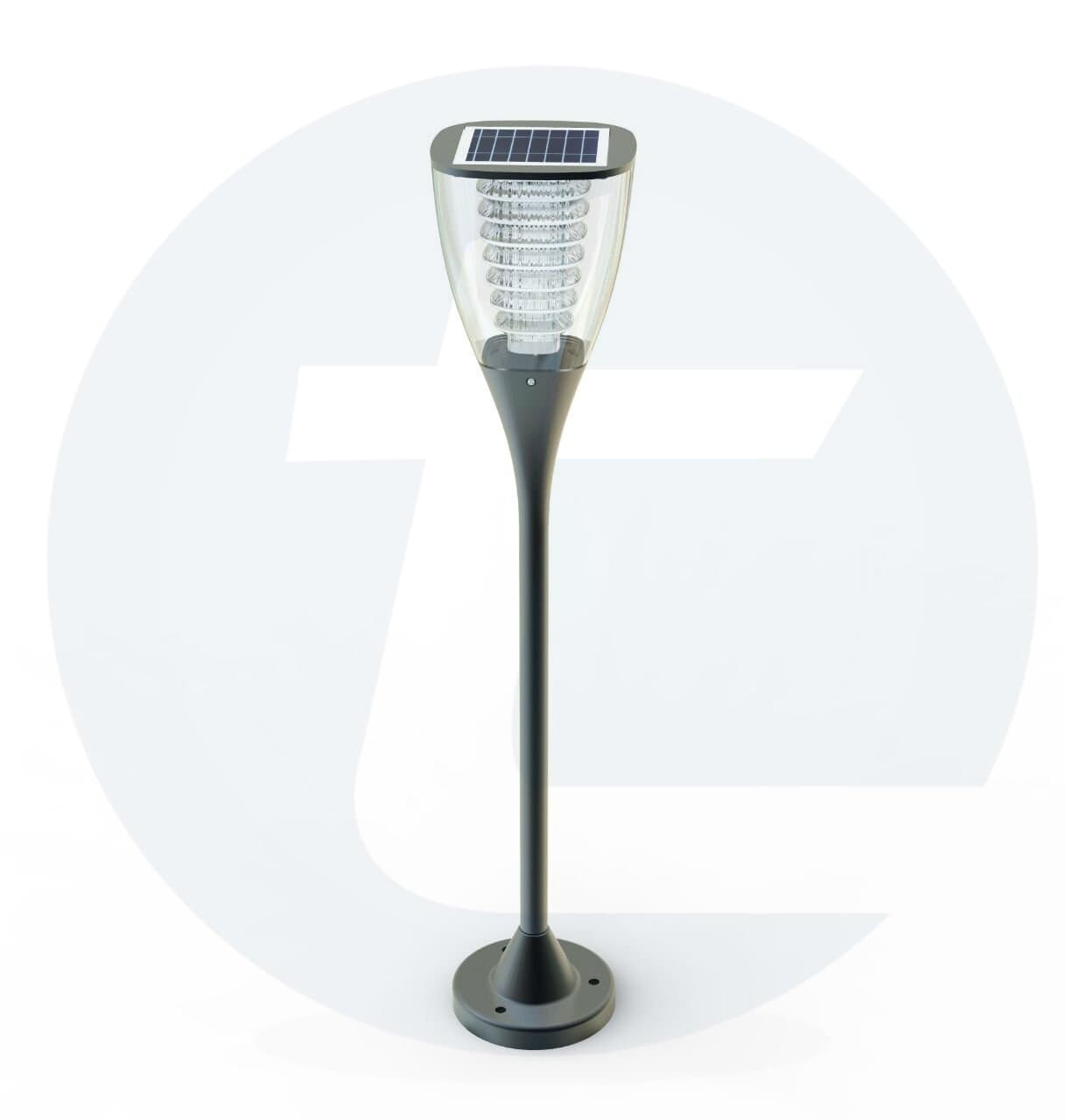

This is an All in one Integrated Solar Garden Light with 1.6 Watt Solar Panel 1.6 Watt NICHIA LED with 110 Lumens. It consists of 3.7 volts 2 AH Li-ion battery. Inbuilt Rechargeable Lithium ion battery provides protection on Overcharging/Discharging of batteries. Light runs from dusk to dawn ensuring to give maximum brightness throughout the night.
Solar Garden light automatically turns ON/OFF depending on the light intensity. Light is switched ON when darkness is detected and is switched OFF when light is detected. This features helps saving the human and material resources.
Application: It is widely used in outdoor garden, lawn, pathway terrace, parks, private gardens and other public areas. It helps create safer environment and can increase people outdoor night activities. It also provides an excellent aesthetic value and gives focal points to outdoor areas.
Product Code: TTSGLWW1W
Item Type: Lawn or Garden Light
Product Color: Black
Water Resistance IP Level: 65
1 Year Warranty.
The light never turns OFF no matter how many rainy or cloudy days.
The Working temperature is -20 to 60 deg C
Integrated design, modular production and one screw installation.
3.7V, low voltage design. Safe and reliable.
The product is used with a high-efficiency Li-ion battery which is usually used for an electric car and home electronics.
These type of Li-ion batteries provide protection on Overcharging/Discharging of batteries.
Integrated package and convenient transportation.
Battery and Solar Panel:
Solar Panel: 5.5V, 1.6W
Solar Panel Life span: 15 Years
Battery Type: Li-ion (Lithium ion)
Battery Voltage: 3.7V
Battery Capacity: 2 Ah
Battery Life span: 5-6 Years
Charge Type: Solar
Charging Time: 7 - 8 Hours
Working Time: 1 Night
LED Wattage: 1.6 W, 110 LM
LED - Max Power: 1.6W 110 Lumens
LED Chip Brand: Nichia
LED Lifetime: 50000 Hrs
Viewing Angle: 360°
Light Color and temperature: Warm White, 2700-3300K
Number of LED’s: 32
ON and OFF Switch: Automatic.
Installation distance is 3 Meters.
It can be installed on any flat surface.
3 M10 bolts are required for installation which has to be bought separately.
Design and Finishing:
Material - Body: Aluminium + ABS + PC
Style: Modern, Elegant CUP Design.
Product Color: Black
Included in Box:
All in One Integrated Solar Garden Light with Inbuilt battery and solar panel, 1 pc pole and 1 pc bottom support.
Product Weight and Dimensions:
Pictorial Information of Solar Garden Light:
Solar Panel – During day solar cells absorbs solar energy.
Solar cells convert the solar energy into electrical energy which is stored in the battery.
Garden light detects darkness and automatically consumes the energy that is already stored in the battery and emits lights in the LED.
Features and Advantages of a Solar Garden light:
Energy Saving: Transforms sunlight into electrical energy. Sunlight is unlimited, clean and alternative energy source.
The light can be installed on any flat surface. The Working temperature is -20 to 60 deg C.
Environment Protection: No Pollution, Noise or Radiation.
Safety: Lower Voltage Power Supply (3.7 Volts), safe than conventional energy sources. This product is very safe and reliable operation.
This solar garden light has got Li-ion battery which provides protection on Overcharging/Discharging of batteries.
Easy Installation, no hanging wires or construction needed. The lamp can light up vast areas and 360-degree angle.
Unmatched reliability and quality.
Maintenance Free. This lamp turns ON / OFF Automatically. It does not need and manual intervention. Also there is no other maintenance required other than cleaning solar panel once in a while.
Eco friendly and high-end usage.
Elegant and Modern design. Can be used anywhere which gives a very rich look.
Solar Garden Light should be installed on any flat surface with sufficient sunlight.
This product can be easily fitted with M10 bolts.
Except bolts all the materials are provided along with the light.
Easy Installation: Fix the light with the pole and bottom support. Once the light is ready use M10 bots to fit the Solar Garden Light.
This product is maintenance free. However, if the product is used in areas where there is lot of dust, the solar panel has to be cleaned once in 6 months to ensure product charges efficiently.
Install the light at certain angle, so that during raining season panel is cleaned naturally.
This solar garden light comes with 1.6 Watt Polycrystalline panel. It has a life span of 15 years. Normal sunlight should be sufficient to charge the battery as it needs to generate 3.7 volt’s power. These lights can be installed in any directions on a flat surface. Ensure that sufficient sunlight falls on the Solar Panel for the battery to get charged fully and for maximum brightness of the light throughout the night.
Size of panel:
Solar Panel Dimension
Battery type of this solar garden light is Li-ion (Lithium Ion Batteries). Unlike other types of batteries, life span of this battery is 5 to 6 Years. Advantage of using this battery is, it charges with 3.7 Volts. That means normal daylight would be sufficient to charge.
Battery Capacity is 3.7 V 2 AH. That is7.4 Watt hours. Battery cycle is 2000. Controller ( Battery Management System or Protection Circuit) in the light ensures that there is cut off when battery is fully charged there by enhancing the health of the battery, Controller never allows battery to either over charge or discharge.
These type of batteries are safe & reliable, does not require priming and have high energy density. The rate of self-discharge is much lower than that of other rechargeable batteries.
LED used in this light is SMD NICHIA. It is a renowned brand and world’s largest supplier of LED’s. NICHIA has got the most advanced LED technology with the capacity to emit 110 Lumens. This light has got 110 Lumens. LED lifetime is 50000 hours. This light spreads around 3 meters’ diameter in 360 Degree angle.
