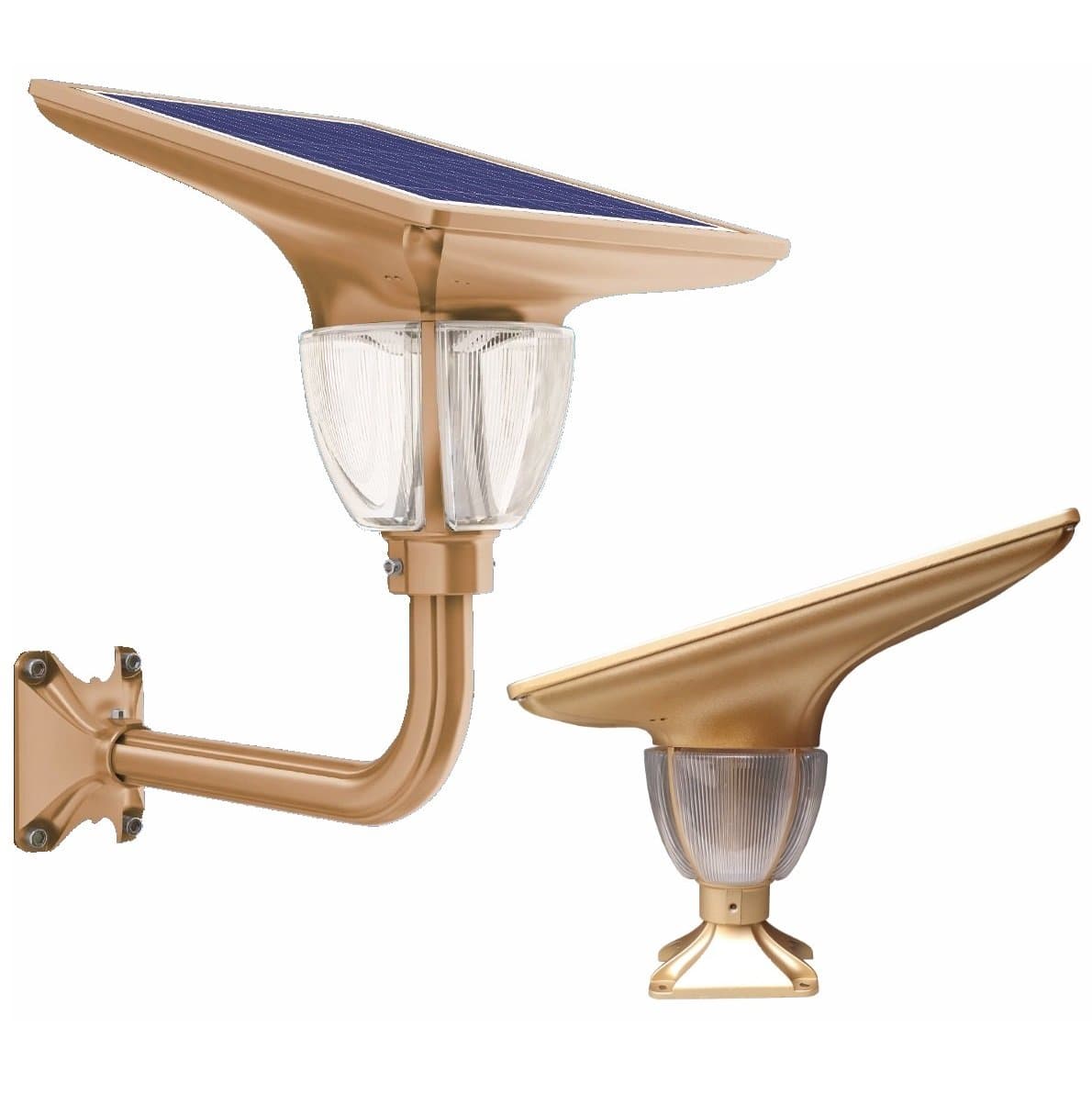

Solar Gate/Garden Light Cool White 5 Watt - TTSGLW5W

Regular price Rs. 8,999.00 Rs. 7,500.00

* Order above Rs.3500 and get FREE DELIVERY.

Overview:

This is an All in One integrated Solar Garden Light with 15 Watt Solar Panel 5 Watt NICHIA LED with 1050 Lumens. It consists of 3.2 volts 20 AH LiFePO4 battery. Inbuilt intelligent sensor control system helps in charging the battery and switching light ON/OFF. Light runs with 100% brightness for first 4 hours and later on switched to intelligent control. Intelligent control regulates the brightness depending on the battery availability and ensure that it gives light throughout the night.

Solar Garden light automatically turns ON/OFF depending on the light intensity. Light is switched ON when darkness is detected and is switched OFF when light is detected. This features helps saving the human and material resources.

Application: It is widely used in outdoor garden, lawn, pathway terrace, parks, private garden, house gate, courtyard, fence and other public areas. It helps create safer environment and can increase people outdoor night activities. It also provides an excellent aesthetic value and gives focal points to outdoor areas.

Product Details:

  • Product Code: TTSGLW5W
  • Brand: Tapetum
  • Item Type: Garden Light
  • Product Color: Gold
  • Water Resistance IP Level: 65
  • 1 Year Warranty.

Product Features:

  • The light never turns OFF no matter how many rainy or cloudy days.
  • The Working temperature is -20 to 60 deg C.
  • 7V, low voltage design. Safe and reliable.
  • The product is used with a high-efficiency LiFePO4 battery which is usually used for an electric bus.
  • The light can be installed from Equator area to Polar region.
  • Integrated package and convenient transportation.

Battery and Solar Panel:

  • Solar Panel: 15W
  • Solar Panel Life span: 25 Years
  • Battery Type: LiFePO4
  • Battery Voltage: 3.2V
  • Battery Capacity: 20 Ah
  • Battery Life span: 8-12 Years
  • Charge Type: Solar
  • Charging Time: 6 Hours
  • Working Time: 1 Night

LED Specifications:

  • LED Wattage: 5 W, 1050 LM
  • LED - Max Power: 5W 1050 Lumens (1w=160 Lumens)
  • LED Chip Brand: Nichia
  • LED Lifetime: 50000 Hrs
  • Viewing Angle: 360°
  • Light Color and temperature: Warm White, 27 00-3300K
  • Number of LED’s: 8
  • ON and OFF Switch: Automatic.

Installation Condition:

  • Installation distance is 10-15 Meters.
  • Installation height is 2.5-3.5 Meters.
  • It can be installed on a pole or wall.

Design and Finishing:

  • Material - Body: ABS
  • Style: Modern, Elegant Appearance Design.
  • Product Color: Gold

Included in Box:

  • All in One Integrated Solar Garden Light 2 pc’s with Inbuilt battery and solar panel.
  • Clamp and M5 Allen Key.



Product Weight & Dimensions:

Product Dimension

Height

38

CM

Width

26

CM

Package Size: 498*373*268 mm

Pictorial Information of Solar Garden Light:

Solar Panel:

Solar Panel – During day solar cells absorbs solar energy.



Battery:

Solar cells convert the solar energy into electrical energy which is stored in the battery.



LED:

Garden light detects darkness and automatically consumes the energy that is already stored in the battery and emits lights in the LED.



Features and Advantages of a Solar Garden light 5W:

  • Energy Saving: Transforms sunlight into electrical energy. Sunlight is unlimited, clean and alternative energy source.
  • The light can be installed on any flat surface. The Working temperature is -20 to 60 deg C.
  • Environment Protection: No Pollution, Noise or Radiation.
  • Safety: Lower Voltage Power Supply (3.7 Volts), safe than conventional energy sources. This product is very safe and reliable operation.
  • This solar Garden light has got LiFePO4 battery which can withstand very high and low temperature. It is more efficient than Li-ion and lead acid batteries.
  • Easy Installation, no hanging wires or construction needed. The lamp can light up vast areas and 360-degree angle.
  • Unmatched reliability and quality.
  • Maintenance Free. This lamp turns ON / OFF Automatically. It does not need and manual intervention. Also there is no other maintenance required other than cleaning solar panel once in a while.
  • Eco friendly and high-end usage.
  • Elegant and Modern design. Can be used anywhere which gives a very rich look.

Solar Garden Light 5W User Manual:

Click to Download User Manual.

Installation Manual, Guide and Conditions:

Pole:

  • Solar Garden Light should be installed on open sided land with sufficient sunlight.
  • This product can be easily fitted on 60 mm diameter pole.
  • Except pole all the materials are provided along with the light.
  • Use GI or MS pole depending on the requirements.
  • Height of the pole should be 4 Meters above the ground level.
  • This product can be fitted on any design pole, ensure the inner diameter of the pole is not greater than 1 Inch.
  • Easy Installation: Once the pole is ready, use Clamp, Nuts & Bolts provided to fit the solar Gate light.

Wall:

  • Drill 4 holes on the wall taking the measurement from the clamp attached to light.
  • Use M8 Anchor Bolts to fix the integrated lamp on the wall.
  • Ensure there is sufficient sunlight in the place of installation.

Maintenance:

  • This product is maintenance free. However, if the product is used in areas where there is lot of dust, the solar panel has to be cleaned once in 6 months to ensure product charges efficiently.
  • Install the light at certain angle, so that during raining season panel is cleaned naturally.

Solar Panel:

This solar garden light comes with 15 Watt Polycrystalline panel. It has a life span of 25 years. Normal sunlight should be sufficient to charge the battery as it needs to generate 3.2 volt’s power. These lights can be installed in any directions on a flat surface. Ensure that sufficient sunlight falls on the Solar Panel for the battery to get charged fully and for maximum brightness of the light throughout the night.

Size of panel:

Solar Panel Dimension

Height

34.5

CM

Width

22

CM

Battery:

Battery type of this solar street light is LIFEPO4 (Lithium iron phosphate Batteries or Lithium Ferrous phosphate). Unlike other types of batteries, life span of this battery is 8 to 12 Years. Advantage of using this battery is, it charges with 3.2 Volts. That means normal daylight would be sufficient to charge.

Battery Capacity is 3.2 V 20 AH. That is 64 Watt hours. Battery cycle is 3000. Controller (Battery Management System or Protection Circuit) in the light ensures that there is cut off when battery is fully charged there by enhancing the health of the battery, Controller never allows battery to either over charge or discharge.

These type of batteries are safer, efficient and with stand high and low temperature. This the most advanced battery available in the market.

LED:

LED used in this light is SMD NICHIA. It is a renowned brand and world’s largest supplier of LED’s. NICHIA has got the most advanced LED technology with the capacity to emit 210 Lumens per watt. This light has got 1050 Lumens where 160 Lumens per 1 Watt. LED lifetime is 50000 hours. This light spreads around 4 meters’ diameter in 360 Degree angle.

Relevant Keywords Search:

  • Solar Garden Lights Price.
  • Outdoor Lights for house.
  • LED Garden Lights India.
  • Solar Garden Lights on sale.





Warranty disclaimer

Tapetum India Solar offers Offsite warranty for all of the products, this warranty covers any functional defects for the warranty period.

During the warranty period, products or part of a product that proves defective will be repaired or replaced, at no charge.

Physical Damage/Any sort of tampering with the product is not covered under warranty.

Shipping and handling charges is not covered under warranty.
