Overview:

This is an Integrated Solar Emergency Tube Light with 2 Watt Solar Panel 5 Watt NICHIA LED with 400 Lumens. It consists of 3.7 volts 2600 mAH Li-ion battery. This tube light also acts as a power bank. A USB cable is provided with the light through which the mobile can be connected and charged.

The Solar Emergency Tube Light switches ON/OFF by clicking on the power button which is present on side of the light.

• With the first click the light turns on with 100% brightness and works for 8 hours.
• With the second click the brightness of the light reduces to 50% and works for 16 hours.
• With the third click the brightness of the light reduces to 25% and works around 20 hours.
• With the fourth click the light turns to SOS mode where the red light keeps blinking until we turn OFF the light.

Application: It is widely used in Non-electrified rural areas, as an emergency lighting system in housing and commercial establishments, car parking sheds and huts, resorts and other public areas. It helps create safer environment and this system is a clean source of illumination.

Product Details:

• Product Code: TTSELTL5W
• Brand: Tapetum
• Item Type: Indoor/Outdoor Light
• Product Color: White
• Water Resistance IP Level: 65
• 1 Year Warranty.

Product Features:

• The light never turns OFF no matter how many rainy or cloudy days.
• The light works from Equator area to Polar region.
• The Working temperature is -20 to 60 deg C
• 7V, low voltage design. Safe and reliable.
• Equipped with the concealed hook, NdFeB magnets & lanyards, applicable to a variety of installation.
• Super bright SMD2835 LEDs, soft light beam, no glare.
• Smart driver inside, overvoltage & overcurrent IC protection to ensure safety.
• The product is used with a high-efficiency Li-ion battery which is usually used for an electric car and home electronics.
• Integrated package and convenient transportation.

Battery and Solar Panel:

• Solar Panel: 2W
• Solar Panel Life span: 15 Years
• Battery Type: Li-ion
• Battery Voltage: 3.7V
• Battery Capacity: 2600 mAh
• Battery Life span: 5-6 Years
• Charge Type: Solar
• Charging Time: 4 Hours
• Working Time: 6-18 Hours

LED Specifications:

• LED Wattage: 5 W, 400 LM
• LED - Max Power: 5W 400 Lumens (1w=160 Lumens)
• LED Chip Brand: Nichia
• Led Lifetime: >50000 Hrs
• Viewing Angle: 180°
• Light Color and temperature: Cool White, 5000-6000K
• Number of Bulbs: 1
• ON and OFF Switch: Available

Design and Finishing:

• Material - Body: Aluminium + PC + ABS.
• Style: Modern, Compact Elegant Appearance.
• Product Color: Green & Blue.

Included in Box:

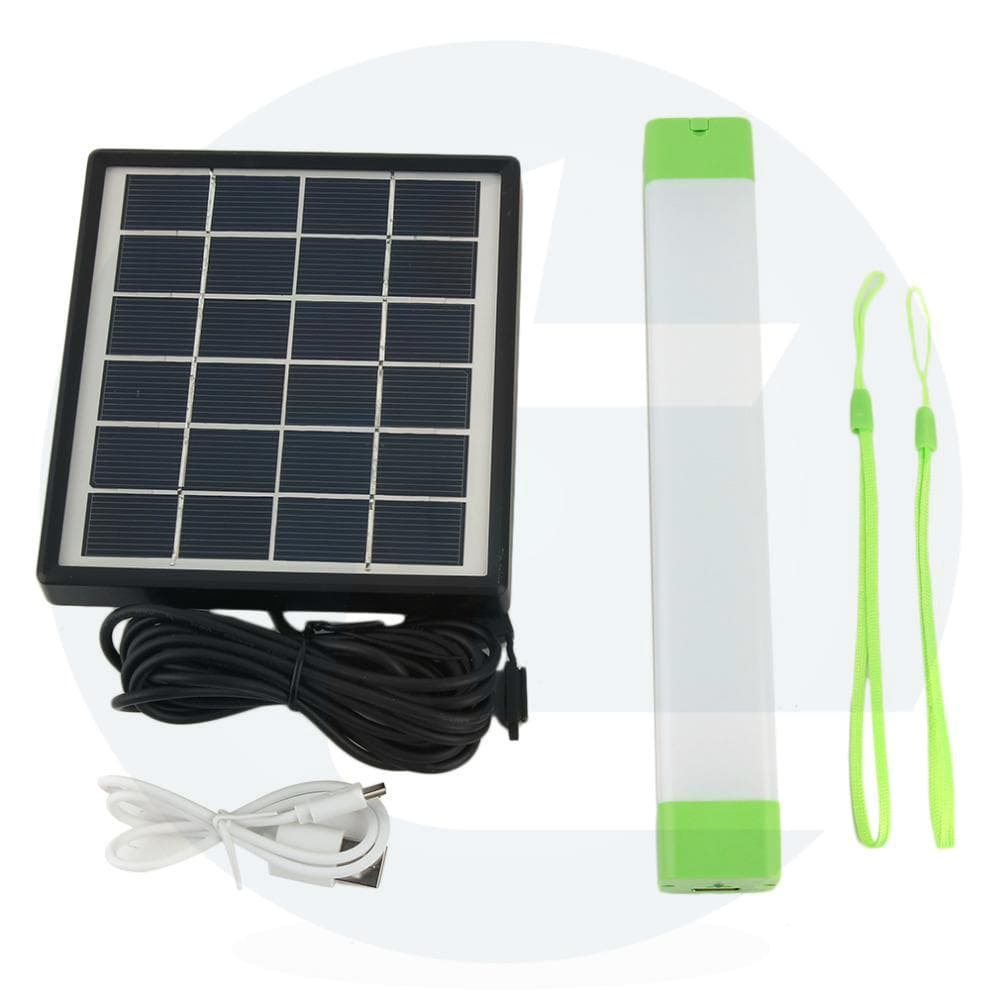

• Integrated Solar Emergency Tube Light with Inbuilt battery and solar panel.
• 2 Meter Wire and a USB cable.

Product Weight and Dimensions:

Pictorial Information of Solar Emergency Tube Light 5 Watt:

Solar Panel:

Solar Panel – During day solar cells absorbs solar energy.

Battery:

Solar cells convert the solar energy into electrical energy which is stored in the battery.

 LED:

Tube light detects darkness and automatically consumes the energy that is already stored in the battery and emits lights in the LED.

 Features and Advantages of a Solar Emergency Tube light:

• Energy Saving: Transforms sunlight into electrical energy. Sunlight is unlimited, clean and alternative energy source.
• The light can be used from Equator area to Polar Regions. The Working temperature is -20 to 60 deg C.
• Environment Protection: No Pollution, Noise or Radiation.
• Safety: Lower Voltage Power Supply (3.7 Volts), safe than conventional energy sources. This product is very safe and reliable operation.
• This solar emergency tube light has got Li-ion battery which provides protection on Overcharging/Discharging of batteries.
• No Installation, no hanging wires or construction needed. The lamp can light up vast areas and 180-degree angle.
• Unmatched reliability and quality.
• Maintenance Free. There is no other maintenance required other than cleaning solar panel once in a while.
• Eco friendly, Portable and high-end usage.
• Elegant and Modern design. Can be used anywhere which is very compact and handy.

Solar Emergency Tube Light 5 Watt User Manual:

 Click to Download User Manual.

Manual, Guide and Conditions:

Maintenance:

• This product is maintenance free. However, if the product is used in areas where there is lot of dust, the solar panel has to be cleaned once in 6 months to ensure product charges efficiently.

Solar Panel:

This solar emergency tube light comes with 5 Watt Polycrystalline panel. It has a life span of 15 years. Normal sunlight should be sufficient to charge the battery as it needs to generate 3.7 volt’s power.

Size of panel:

Battery:

Battery type of this solar gate light is Li-ion (Lithium Ion Batteries). Unlike other types of batteries, life span of this battery is 5 to 6 Years. Advantage of using this battery is, it charges with 3.7 Volts. That means normal daylight would be sufficient to charge.

Battery Capacity is 3.7 V 2600 mAH. That is 9.6 Watt hours. Battery cycle is 2000. Controller ( Battery Management System or Protection Circuit)  in the light ensures that there is cut off when battery is fully charged there by enhancing the health of the battery, Controller never allows battery to either over charge or discharge.

These type of batteries are safe & reliable, does not require priming and have high energy density. The rate of self-discharge is much lower than that of other rechargeable batteries.

 LED:

LED used in this light is SMD NICHIA. It is a renowned brand and world’s largest supplier of LED’s. NICHIA has got the most advanced LED technology with the capacity to emit 210 Lumens per watt. This light has got 400 Lumens where 160 Lumens per 1 Watt. LED lifetime is 50000 hours. This light spreads around 4 meters’ diameter in 180 Degree angle.

Solar Emergency Tube Light Product Video:
